Jim Cerny's Table of Machine-Time Rules at the
2004 East Coast Oughtred Society Meeting.
November 6, 2004. Report and images by Jim Cerny. (3/2005).

I decided to focus my display table on sixteen machine-time rules, presented here as scanned images rather than photographs. Machine-time rules are used to calculate time to do machining operations, often with use of a lathe. The kinds of rules are very diverse and I've made a somewhat aribtrary distinction here between those that are without a cursor and more like slide charts (eponymously "Perrygrafs"), versus those those with a cursor and in the form of traditional slide rules.

Many, though not all of the images, are larger than will fully display in a default browser window and Microsoft Internet Explorer 6 uses automatic image resizing to make it fit without scrolling. To display an image at full size (if it is not already), place the cursor over the lower-right corner of the image and see if the resizing icon appears.

This display is a first step in the process of writing an article on machine-time rules for the Journal of the Oughtred Society. If you have any unusual machine-time rules, please write to me!

Jim's Table of Machine-Time Rules: Slide Rules
Image Thumbnails	Description

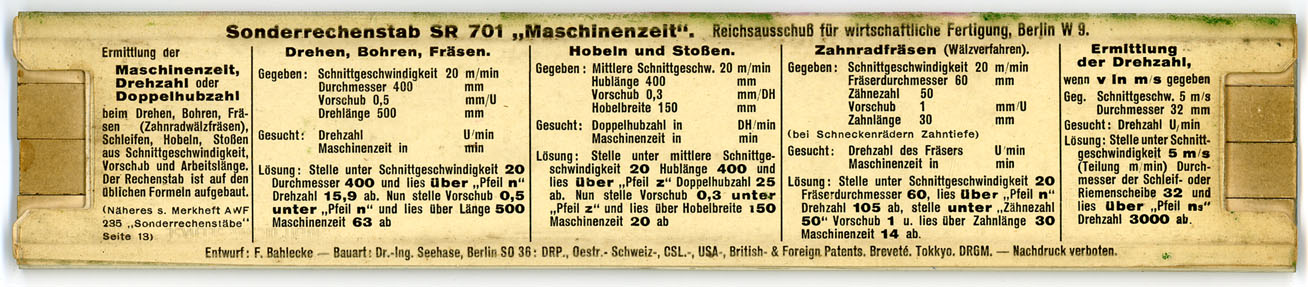

	AWF Sonderrechenstab SR 701 Slide Rule AWF Maschinenzeit. Two slides. Cursor is missing. AWF is now IWA and this rule is equivalent to the IWA 701. Instructions on back in German. 216mm x 45mm overall 1959. for F. Bahlecke cardboard with celluloid shell.

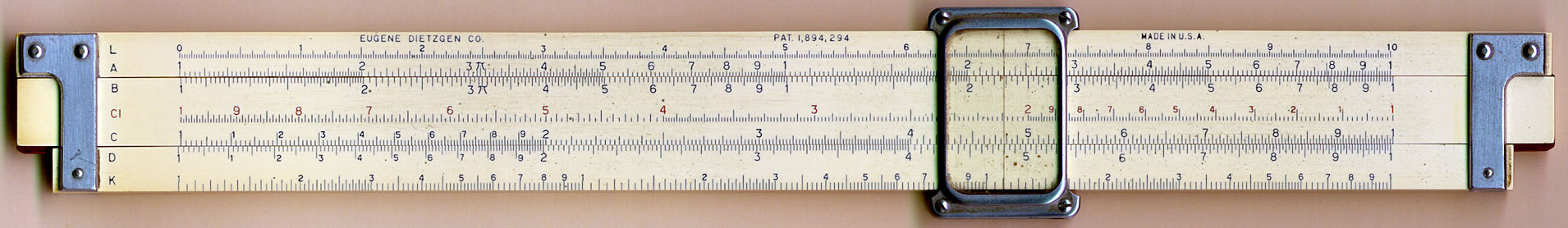

	Dietzgen 1751 Slide Rule Labeled as the "Maniphase Multiplex - Industrial Type," this rule combines machine-times scales on the front with common mathematical scales on the back. The model 1751 rule manifests the proposed Dietzgen "Langsner" 1770-T rule. The Langsner is illustrated in Calvin Bishop's book and was patented (1,894,294), leading many to believe it was manufactured. No examples are known. Meanwhile, the scales on the front of the 1751 match the machine-time scales described in the patent. 317mm x 33mm overall n.d. Dietzgen celluloid on mahogany.

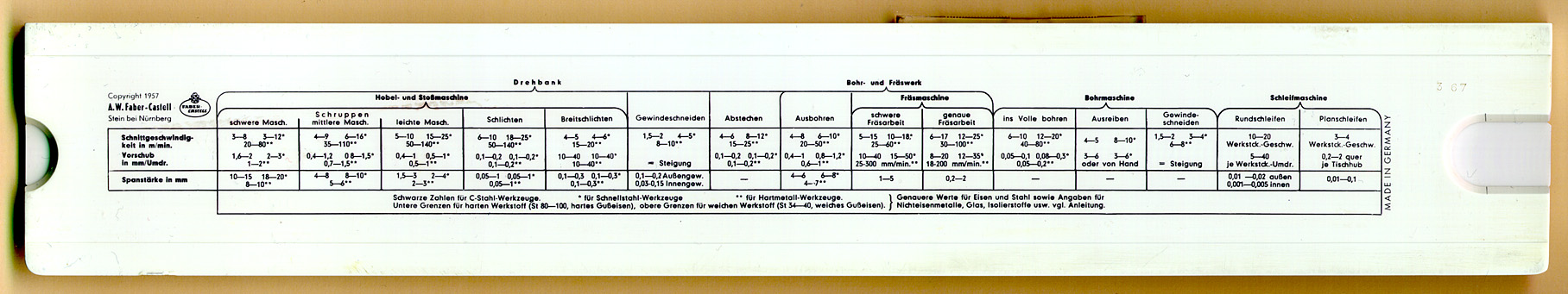

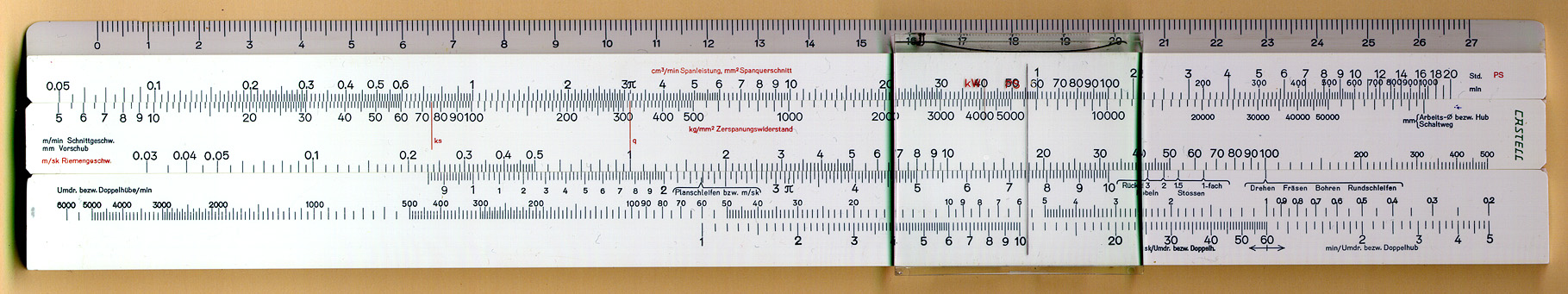

	Faber-Castell 111/48 Maschinenzeit Scales based on System Dr. Winkel. In German (have not seen other language versions). This also exists in a 1/48 model with celluloid on wood. 300mm x 50mm overall 1967. Faber-Castell plastic.

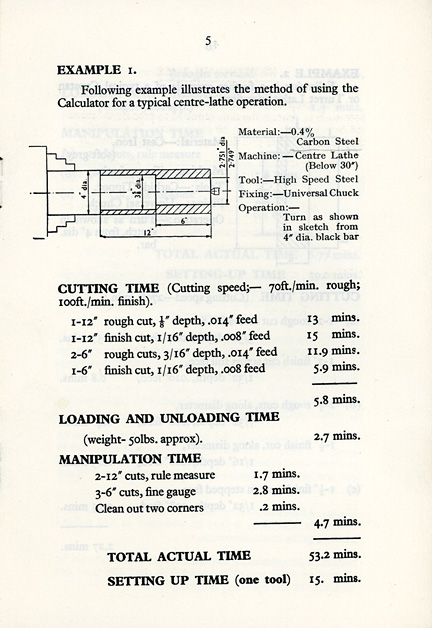

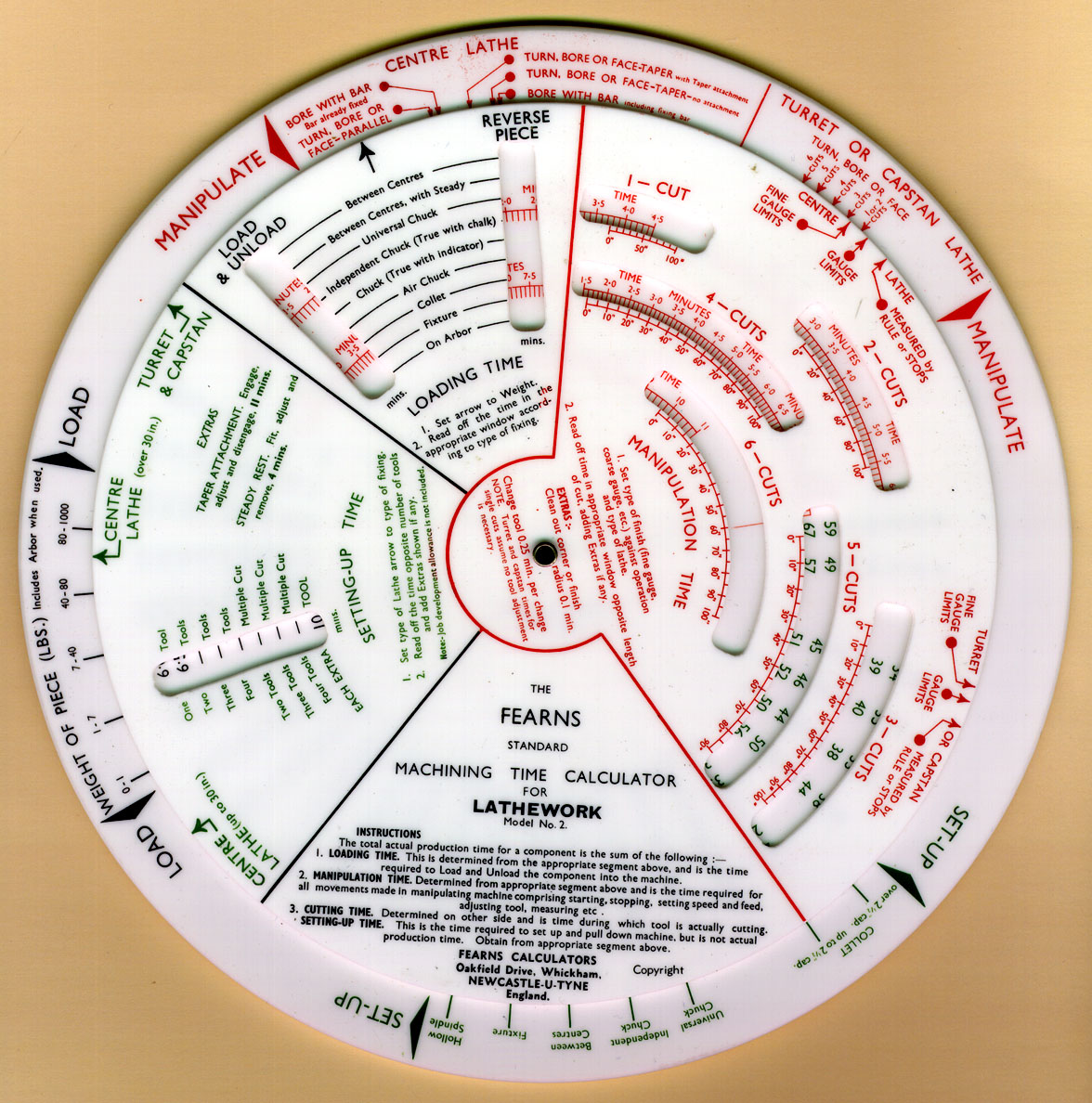

	Fearns no. 2 Lathework Slide Rule Fearns no. 2 Lathework Machining Time Calculator. See sample calculation from manual. 192mm diameter n.d. Fearns plastic.
	IWA 01206 Prof. Olsen Slide Rule IWA 01206 roughness slide rule for turning. Measurement scales on top and bottom edges are clear. Copyright by Prof. K. V. Olsen. Instructions on back in English and German. 280mm x 50mm overall 1971. IWA plastic.
	Lawrence 10-G Slide Rule Cutting speed calculator made for Donald Roberton & Company. 264mm x 28mm overall 1946. Lawrence Engineering wood (pine?).

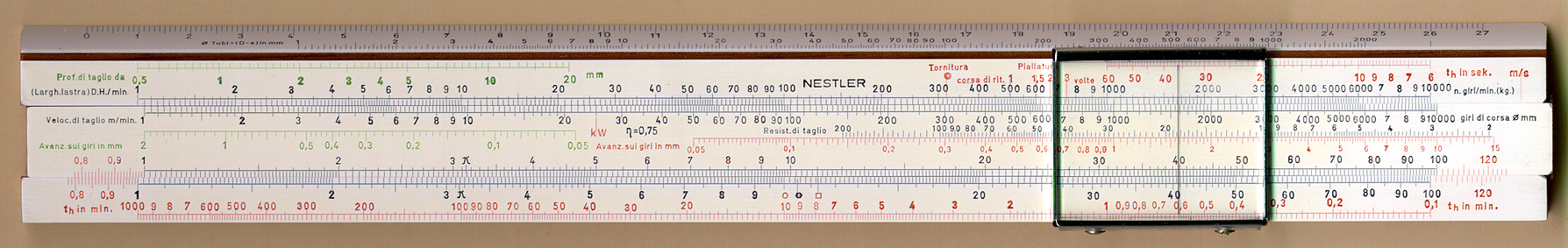

	Nestler Mecanica 0260 Italian version (most often seen), also exists in a German version. 295mm x 38mm overall n.d. (late production) Nestler celluloid on mahogany.
Jim's Table of Machine-Time Rules: Slide Charts
Image Thumbnails	Description
	Adamas Slide Chart Adamas Carbide Corporation slide chart for feed, speed, and horsepower calculations. 184mm x 70mm overall 1959. Perrygraf Corp. cardboard.
	Cincinnati Milling Machine Slide Chart Cincinatti Milling Machine cutting speed and milling setup calculator. Unusual double-circle design. 200mm x 125mm overall 1955. Perrygraf Corp. plastic.

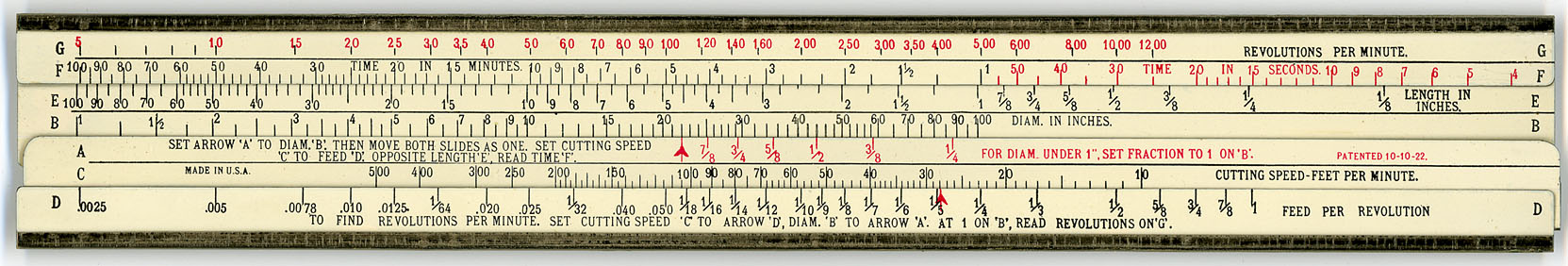

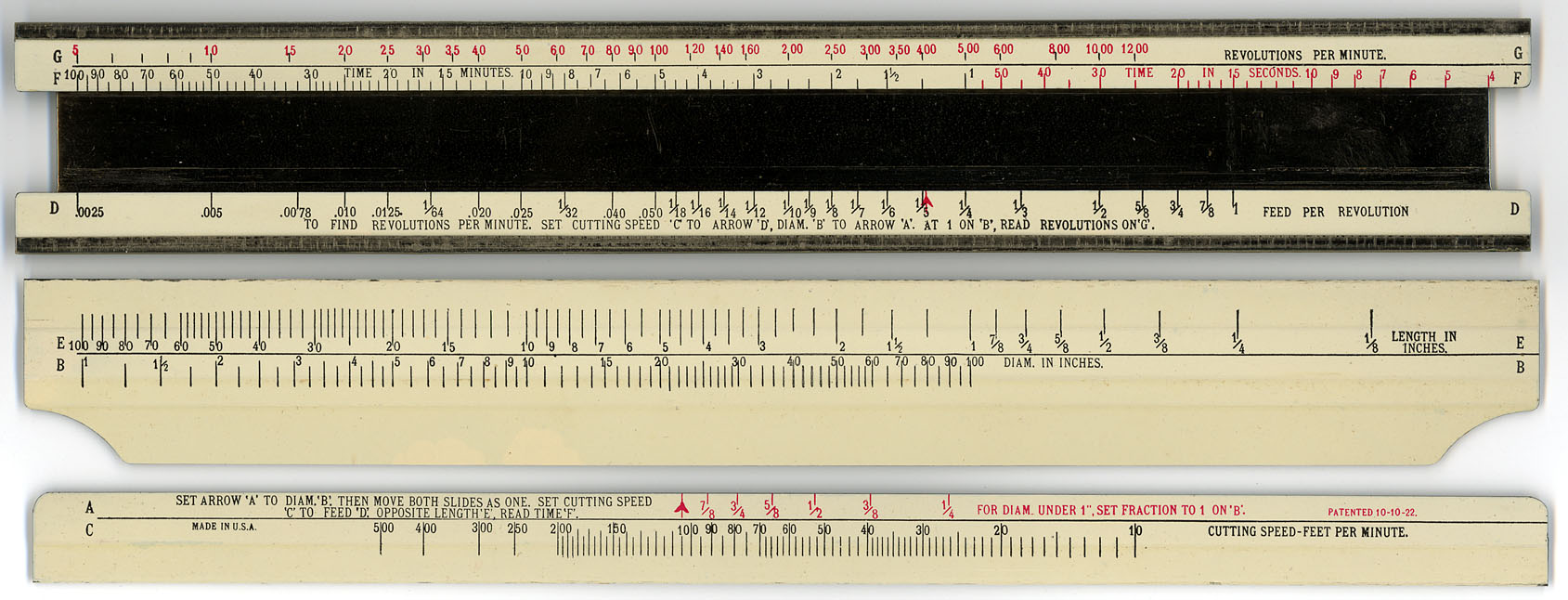

	Gisholt Time Computer (Metal) All metal, with a very unusual nested slide within a slide design. Covered by a 1922 patent. Overall construction and finish identical to the Richardson rules of the same era. 276mm x 43mm overall 1922 patent Richardson? enamel on metal.

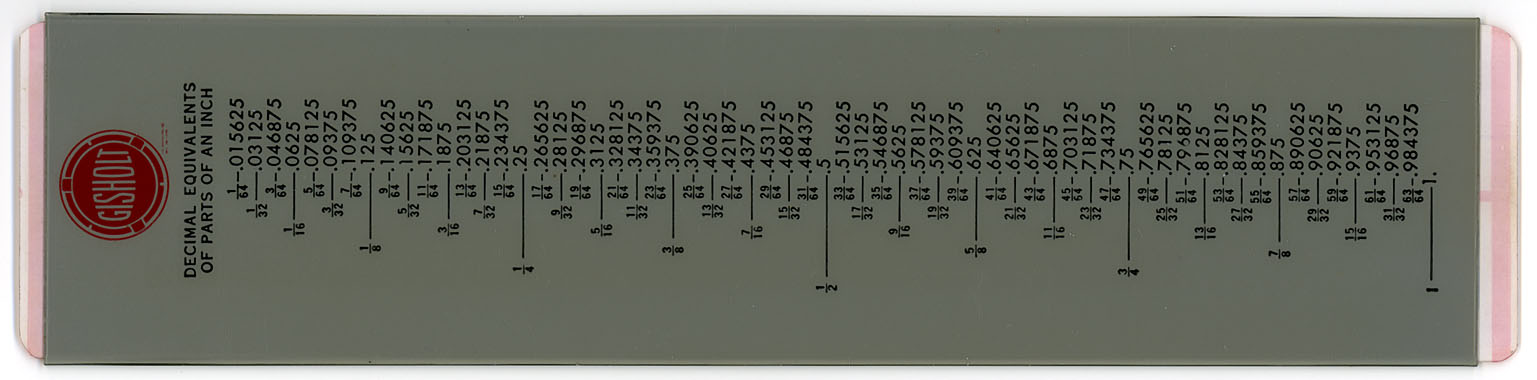

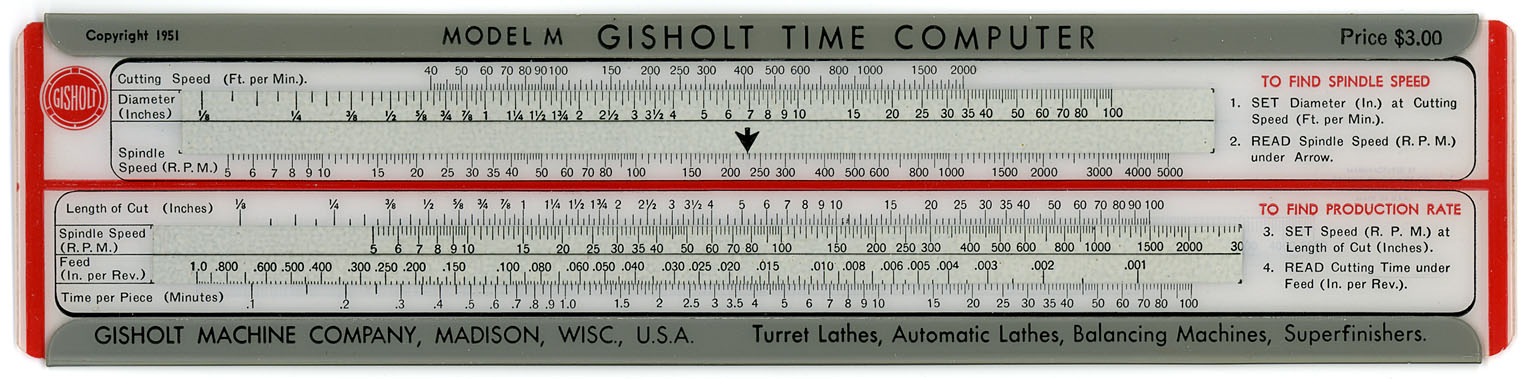

	Gisholt Time Computer (Plastic) A complete redesign of the earlier all-metal rule. 255mm x 60mm overall 1951 Graphic Calculator Co. plastic.

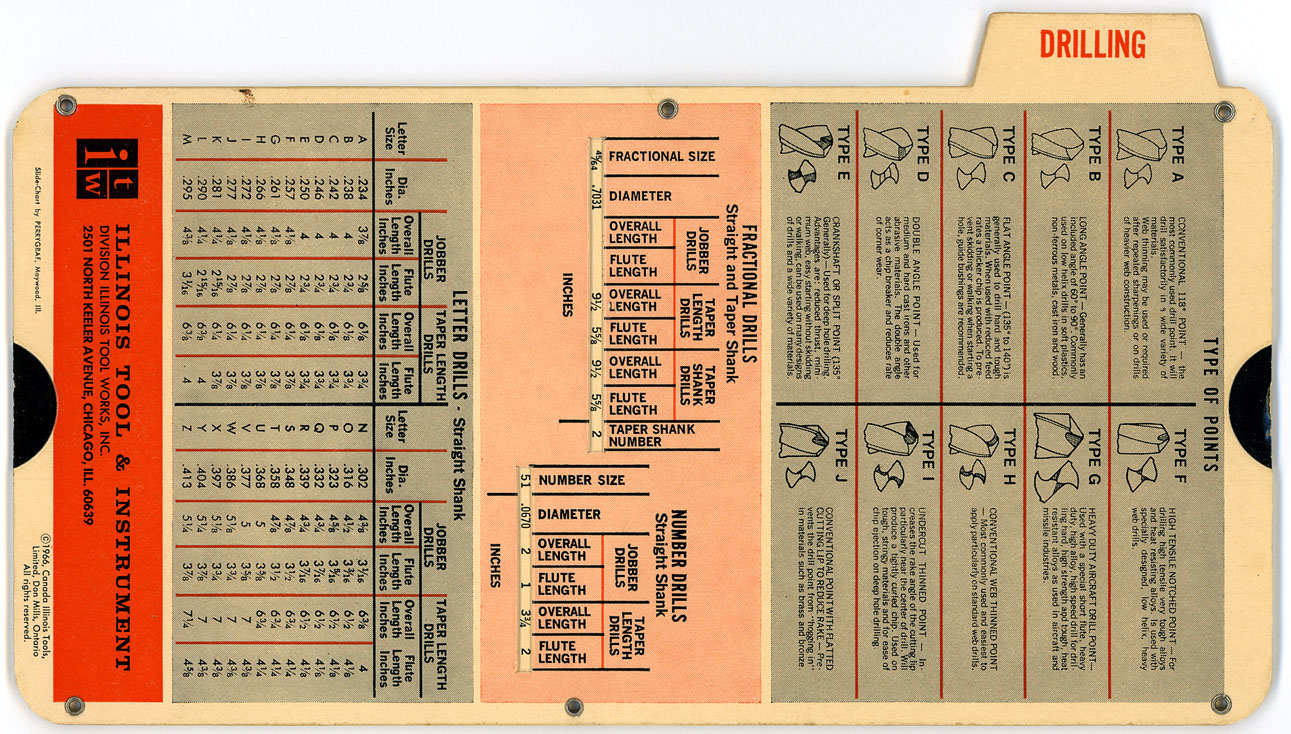

	Illinois Drilling Slide Chart Illinois Tool and Instrument drilling computer, selecting drill bits for speed and feed rates. 214mm x 108mm overall 1966. Perrygraf. cardboard.

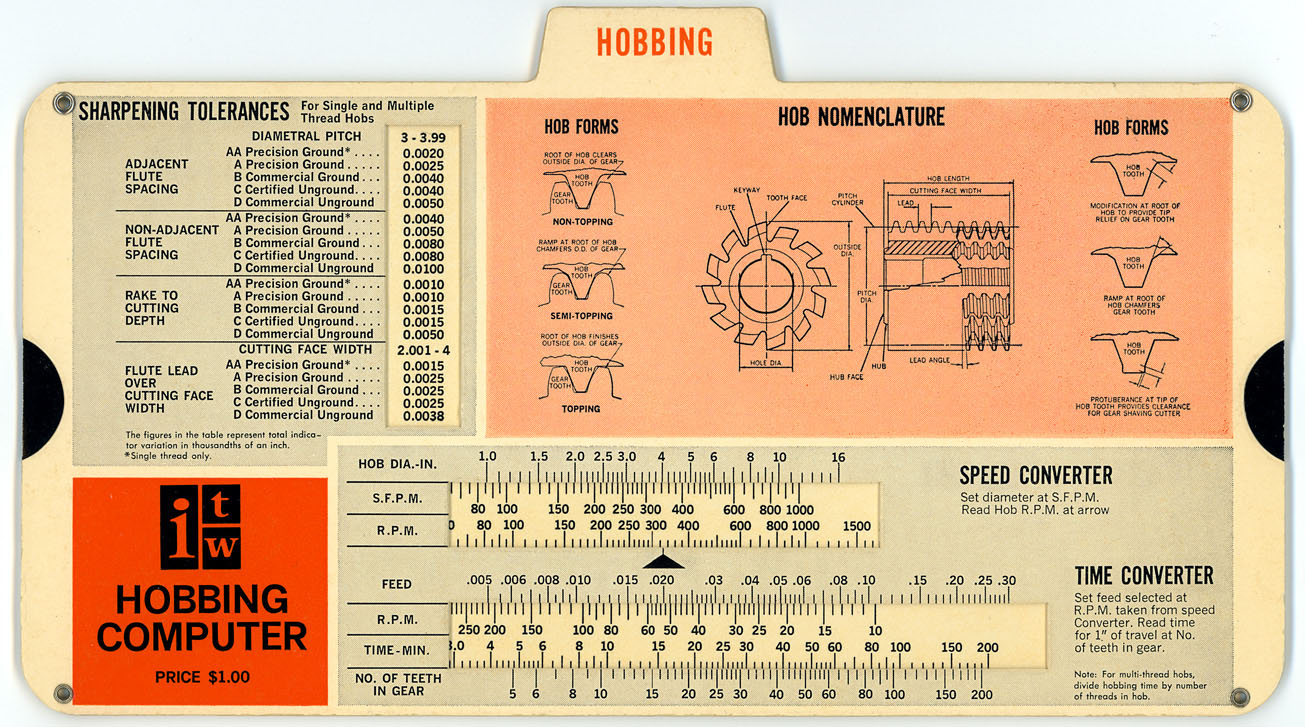

	Illinois Hobbing Slide Chart Illinois Tool and Instrument hobbing computer, selecting speed and feed rates for particular gears. 214mm x 108mm overall 1967. Perrygraf. cardboard.
	Lees-Bradner Hobbing Slide Chart Lees-Bradner Hobbing Time Calculator. Two slides. 212mm x 80mm overall 1964. Perrygraf Corp. cardboard.
	Republic Steel Slide Chart Republic Steel Corporation speed and feed rate calculator for Enduro stainless steel bars. 184mm diameter 1947. Perrygraf Corp. cardboard. part 466A 9600 I-48.

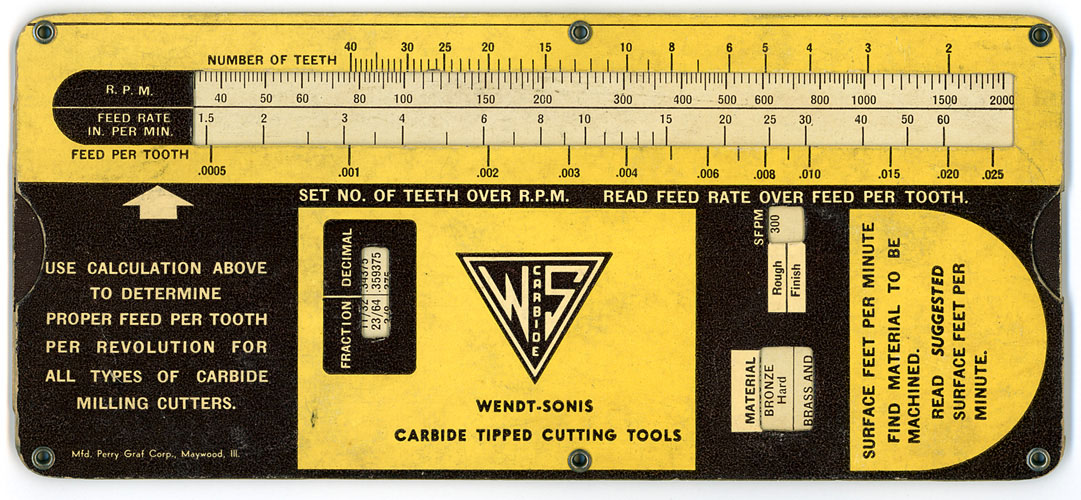

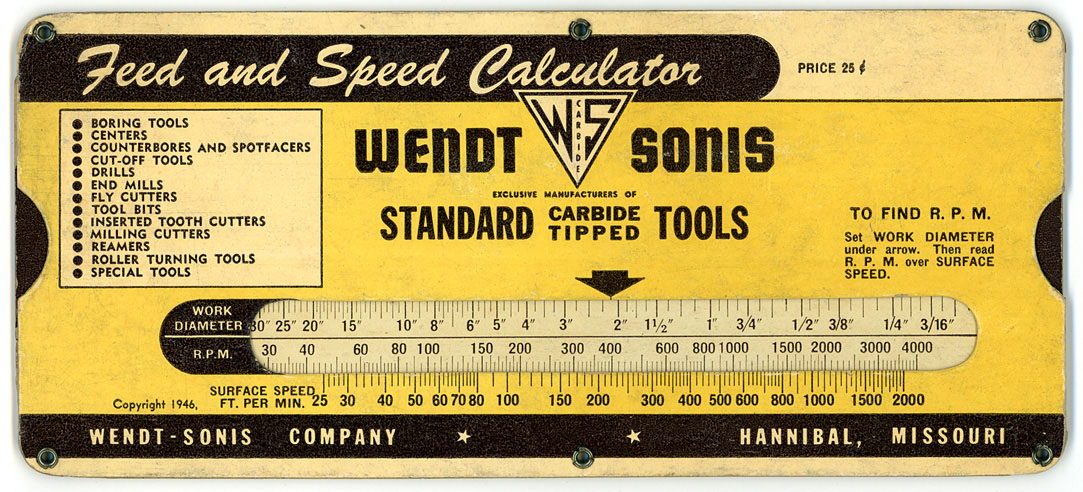

	Wendt-Sonis Slide Chart Wendt-Sonis slide chart (calculator) for computing the feed and speed of material with carbide tipped tools. 179mm x 80mm overall 1946. Perry Graf Corp. cardboard.
